Genuine OEM Tuff Torq - 787Q0324011 - K574a Hsq T/a(shipped W/o Oil)
Replaces the Following:
Husqvarna - 590716801K574

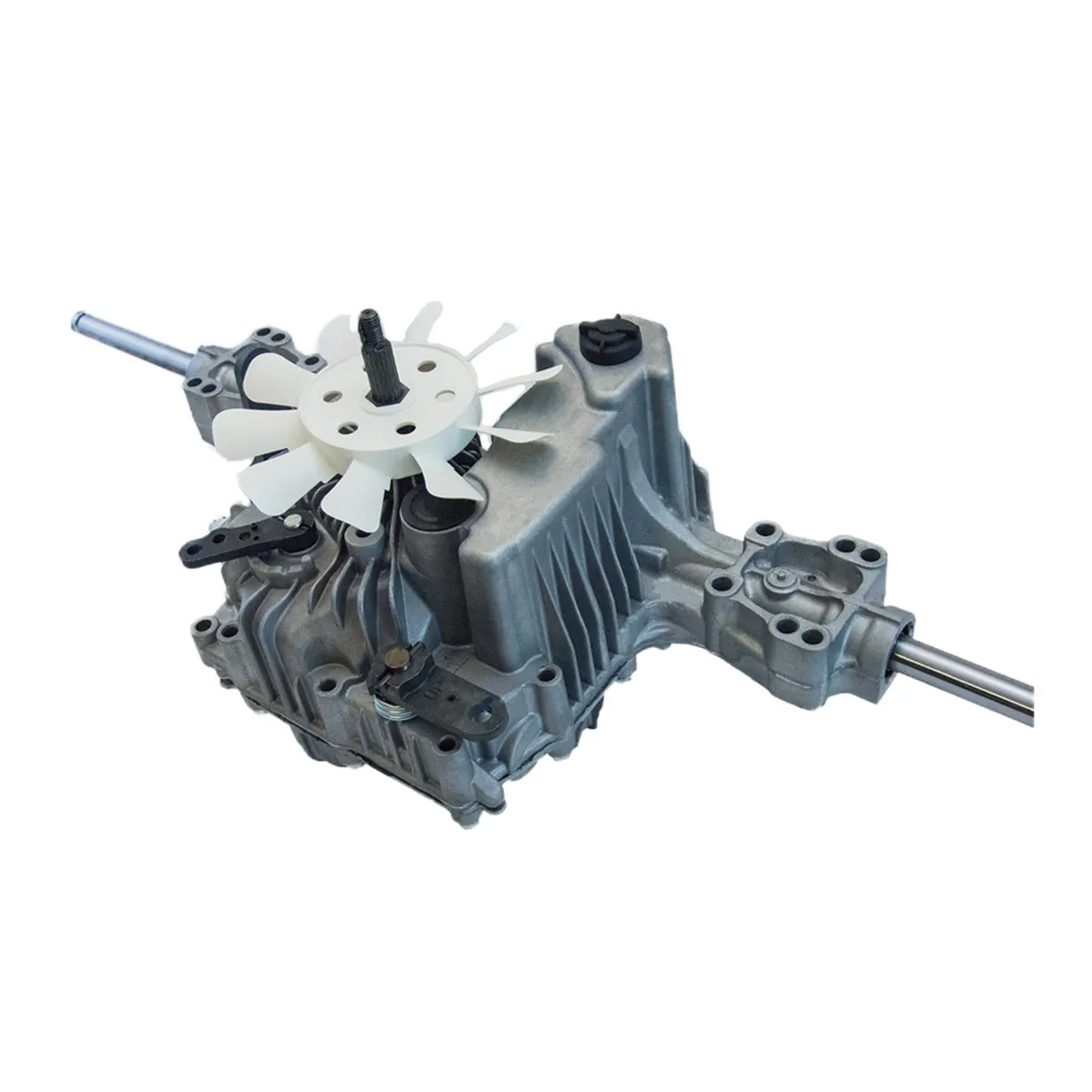

Note: Your unit may look different. The picture is a stock photo of the K574 Series.
Manufacturer ID: K574
If your application needs a transaxle that can support good performance and 4WD technology, or calls for secondary hydraulic support, the K574 may be just what you’re looking for. This powerful unit has many different configurations that have been developed to handle the demands of many different kinds of riding mowers and larger lawn tractors. The K574 is truly a “Swiss Army Knife” of transaxles. It’s substantial engineering, and wide variety of support solutions, has made this powerful product one of the first solutions to many OEM’s complicated and innovative new product applications.
Features
- Patented L.O.G.I.C. case design for easy installation, reliability and serviceability.
- Internal wet disk brake system.
- Reversible output/control lever operating logic for application optimization.
- Smooth operation for either foot or hand control system.
Specifications
|
Specification |
Value |
Units |
|
Application |
4WD Tractors and Mowers |
|
|
Reduction Ratio |
31.68:1 |
|
|
Axle Torque (Rated) |
31.68:1 = 255 (188) |
Nm (ft-lb) |
|
Max. Tire Diameter |
31.68:1 = 559 (22) |
mm (in) |
|
Brake Capacity |
31.68:1 = 372 (275) |
Nm (ft-lb) *@350 N (79 lb) Brake arm force |
|
Displacement (Pump/Motor) |
7/10 |
cc/rev |
|
Max. Input Speed |
3,400 |
rpm |
|
Axle Shaft Size |
19.05 (0.75) |
mm (in) |
|
Weight (dry) |
12.5 (27.6) |
kg (lb) |
|
Brake Type |
Internal Wet Disc |
|
|
Housing (Case) |
Die-Cast Aluminum |
|
|
Gears |
Heat-treated Powder Metal |
|
|
Differential |
Automotive-type Bevel Gears |
|
|
Speed Control System |
Foot Control: Dampening system or external shock absorber available |
|
|
Bypass Valve (Roll Release) |
Standard |
|
|
Hydraulic fluid Type |
Proprietary Tuff Torq Tuff Tech drive fluid recommended. (Contact OEM for other options) |
