Measure extreme temperatures

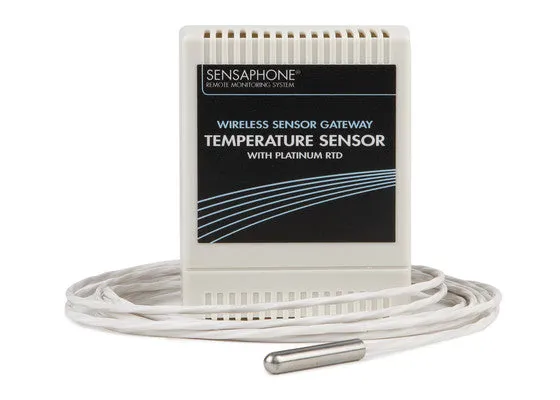

The Temperature Sensor with RTD Probe can be used to measure the temperature in extreme environments. The sensor will operate over the range -200° to 120°C. Two different sized temperature sensing probes are available; the 14” probe is recommended for applications where the sensor cabling cannot be exposed to the cold atmosphere such as monitoring liquid nitrogen.
NIST Certificate Available
Features
- Measures temperature from -328° to 248°F | -200° to 120°C
- Two size probes to choose from: 1" or 14"
- Probes include 10' of wire
- Communicates wirelessly with WSG30 base unit up to 300’ away
- Includes two AA batteries
- Optional power supply available
Technical Specifications
| Name | RTD Probe |
| Sensor Temperature Range | -328° to 248°F | -200° to 120°C |
| RTD Element | PT100 - 385ALPHA - CLASS – B |
| Wireless Range | 300’ | 90m |
| Connection | WSG Wireless |
| Housing | Plastic |
| Dimensions | 3.1 x 3.9 x 1.1” | 79 x 99 x 28mm |
| Notes | Element tolerance to IEC 60751 edition 2.0, par 5.1.2 |
