Electromagnetic tube inspection has rapidly become a routine NDE method for providing reliable and rapid condition assessments of process exchanger tubing.

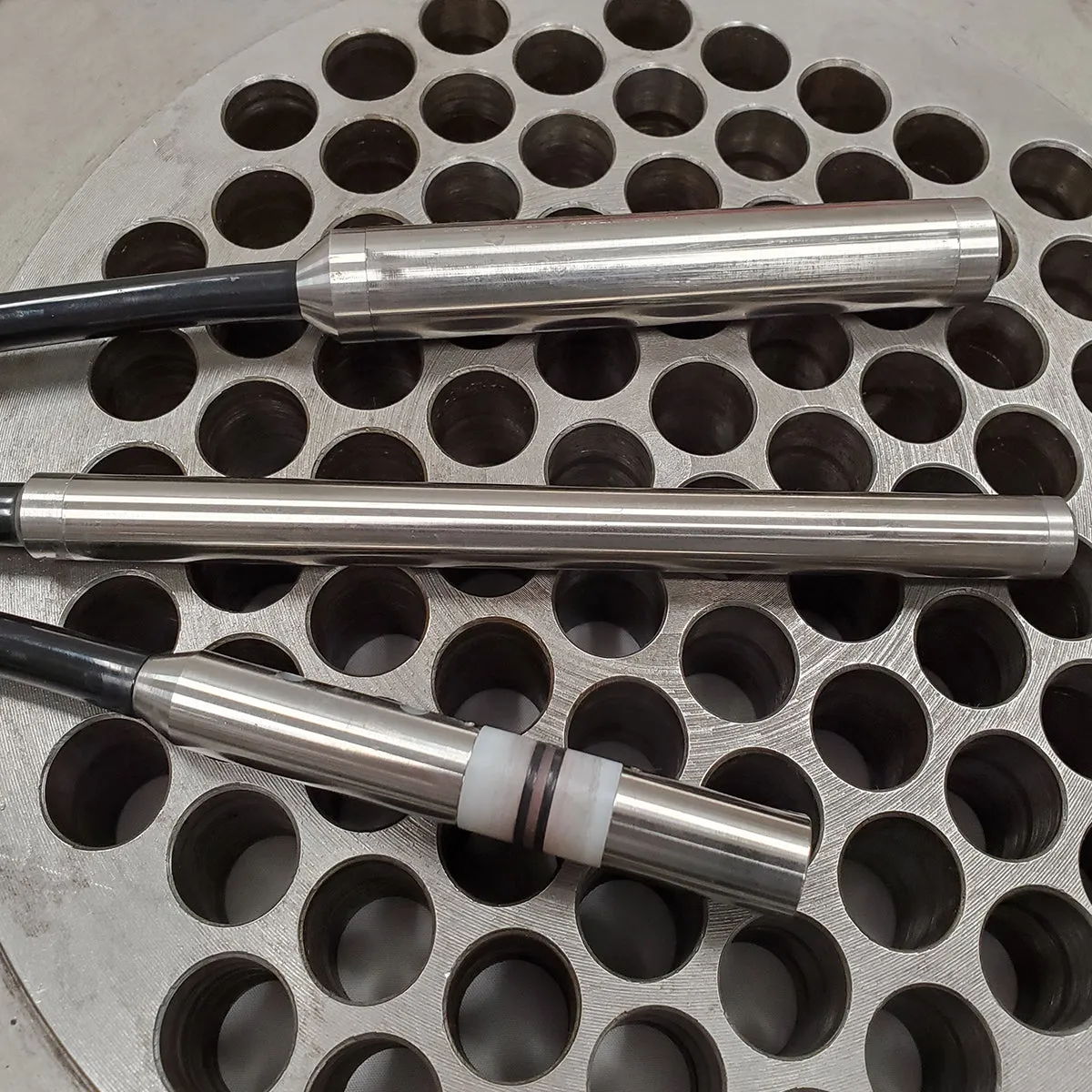

Near Field probes utilize general-purpose bobbin pick-up coils and are designed for inspecting straight-length ferrous fin-fan/air cooler tubing. These probes come standard on bayonet-style 19-pin Amphenol connectors. The probe heads are waterproof with stainless steel covers and wear-resistant ends. Probe shafts are 3/8” in diameter, 50’ in length, and kink resistant. The introductory stocked probe sizes and types are:
Indicate the size you would like a quote on for Near Field Probe.
Size | Frequency Range |
0.625” | Low (50Hz-2.0kHz) |
0.675” | Low (50Hz-2.0kHz) |
0.700” | Low (50Hz-2.0kHz) |
0.750” | Low (50Hz-2.0kHz) |
Additional sizes are available upon request.
