Product Details
＋

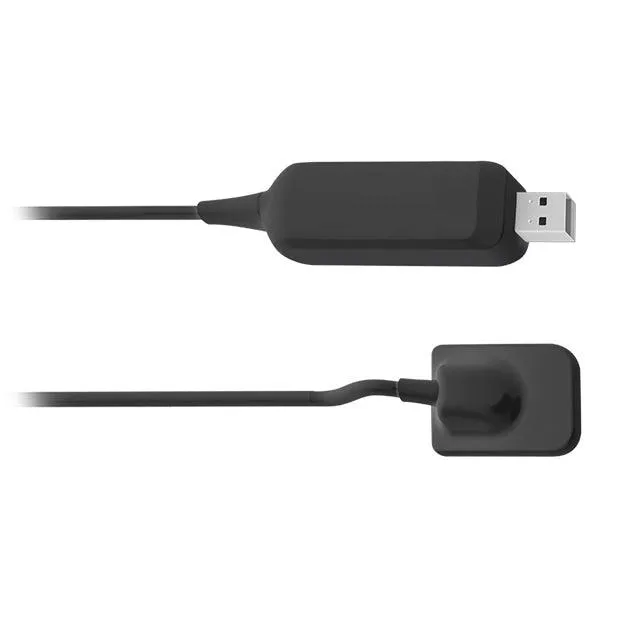

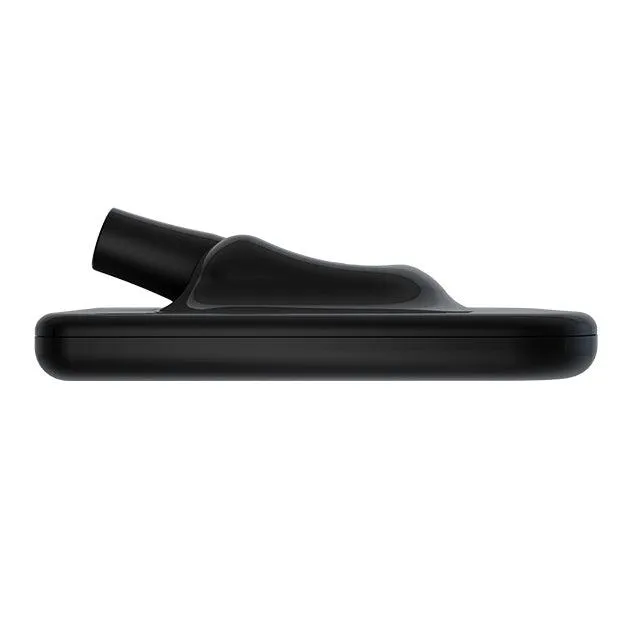

iRay Dental Digital Intra-oral Sensors Black. It features a 20 μm pixel pitch CMOS sensor with CsI scintillator which ensures optimal resolution. The sensor has an ergonomic design with smooth edges, rounded corners, and a flexible cable for maxi-mum patient comfort. FDA approved.
Features
- CMOS detector technology
- Low dose clinical imaging
- High resolution
- Ensures optimal resolution with a 20 μm pixel pitch CMOS sensor and CSI scintillator.
- Wide dynamic range
-

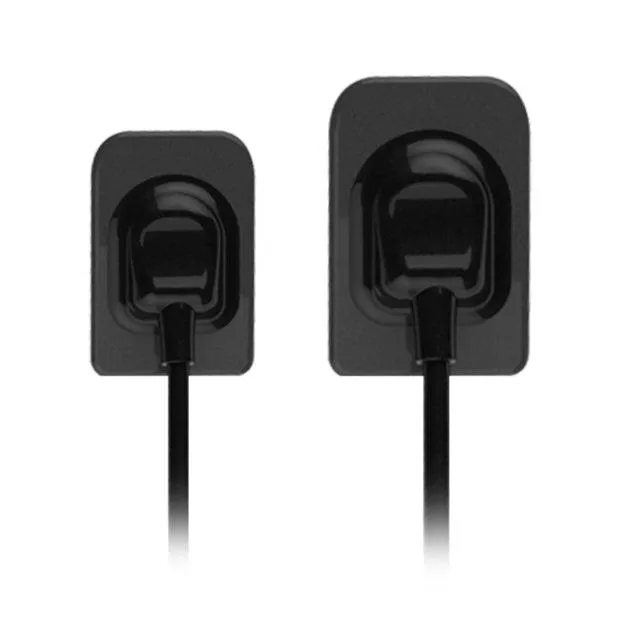

Pluto 0001X suitable for children and adults
-
Pluto 0002X suitable for adults
- Slim, rounded corner and smooth edge
-
Direct USB connectivity
- Easy to Use. Smart and Powerful Software. Waterproof. Durable.
- AED trigger, fast and easy workflow
- Durable material and components
-
Friendly software user interface
- Works with TWAIN supported software. TWAIN works well with Dexis.
Technical Parameters
- Pluto 0001X/ Pluto 0002X
| Detector Technology | CMOS | Dimensions (mm³） |
25.0×38.5×4.5(Pluto 0001X) 31.0 x 45.0 x 4.5(Pluto 0002X) |
|
Scintillator |
Direectly deposited Csl:TI |
Length of cable (ft) | 9.84'(Standard), 16.40'(Option) |
|
Pixel Pitch(μm) |
20 | Housing material | Kevlar |
| Active Area (mm²) |
20x 30(Pluto 0001X) 26x 36(Pluto 0002X) |
X-Ray shielding | Pb-shield behind active area |
|
AD Conversion(bit) |
14 | Radiation dose | ≥50Gy |
|
Exposure Mode |
Smart AED |
Ingress Protection | IP68 |
|
X-ray Exposure Window (s) |
Max.5s | Operating Temperature | 50~104°F |
|
X-ray Energy Range (kV) |
55 ~ 100kV |
Storage& Transport Temperature with Package |
14~140°F |
| Data Interface | 5G Wifi | Operating Humidity (% RH) | 20~90(Non-Condensing) |
|
Power Dissipation(W) |
≤0.8W |
Storage Transport Humidity with Package (% RH) |
10~95(Non-Condensing) |
Warranty
One year warranty
