Feel the Power, Not the Bumps.

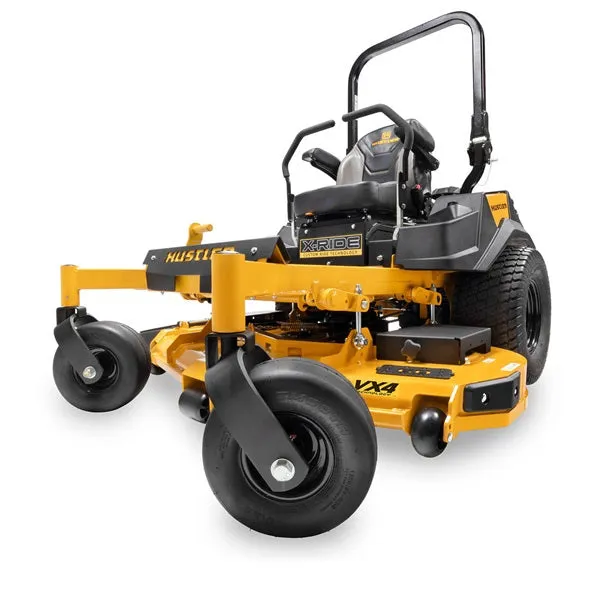

The new X-Ride is equipped with Custom Ride Technology, an isolated operator suspension platform designed to deliver a comfortable ride for the operator even while on rough terrain. The platform absorbs up to 4 inches of travel and has 5 levels of adjustability for the operator to find their comfort preference all while maintaining the stability on the mower.
Custom Ride Technology
Custom ride technology separates the platform from the frame which pivots along the front footrest. Dial-in comfort with 5-adjustment positions, coil-over-shock suspension system, and 4" of total suspension travel.
- Customize the Ride: Personalize the ride with 5 different levels of comfort.
- Coil-Over-Shock: Isolated suspension platform has 4" of travel.
- Easy to Adjust: Fast toolless one-hand adjustability.
- VX4 Deck: Fabricated steel deck engineered to move more grass at high speeds while maintaining cut-quality.
Hustler X-Ride Accessories |
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) |
|
| 3 Bag Catcher Adapter 60" |
|
| Side Fabric Catcher 3.5 Bushel (no adapter needed) |
|
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
|
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) | |
| Mulching Kit 60" |
|
| Flex Forks Kit (cannot use with Bagger installed) |
|
| Front Light Bar Kit |
|
| Side Light Bar Kit (must purchase 129772 to add side light) | |
| Beacon Kit | |
| Flasher Kit | |
| Hitch Kit |
|
| Sand Deck Kit 60" | |
| Steering Lever Extension Kit |
|
| Stripe Kit |
|
| Rear Anti-Scalp (dual) 60" Deck | |
| Rear Anti-Scalp (single) 60" Deck | |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | |
| Michelin X-Tweel Tire 24 x 12N12 | |
| Run Flat - tire/wheel assembly 13 x 6.5 x 6 | |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX820 EVO EFI |
| Engine Horsepower | 34.5 |
| Displacement | 822cc |
| Cooling | Air Cooled |
| Air Cleaner | n/a |
| Engine Warranty | 3 year limited |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear® ZT-5400® |
| Hydraulic Cooling | Transmission mounted fan |
| Fuel Capacity | 12 gal. |
| Ground Speed (Fwd) | Up to 13 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 60" |
| Cutting Height | 1" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 20.50" |
| Blade Tip Speed | 18,600 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
VX4 Deck, Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 ga. stamped disc |
| Impact Trim Area |
Front of deck: 11 gauge formed bump bar, Side of deck: 1.5" x .375" steel bar
|
Construction |
|
| Frame | 3" X 1.5"x 0.188" steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2" steel |
General |
|
| Seat | Bolstered high back seat with padded arm rests & adjustable back |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
13 x 6.5 |
| Drive Tire (Inches) | 24 x 12 |
| Weight (lbs) | 1570 |
| Height (Inches) | 45, 74 w/ ROPS up |
| Length (Inches) | 87 |
| Width w/ Chute Up (Inches) | 61 |
| Tire-to-Tire Width (Inches) | 56 |
| Productivity (Acres Per Hour) | 6.3 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | 3-bag |
| Powered / Non-powered | Powered |
| Catcher Capacity | 12 bushel |
| Mower Length w/ Catcher | n/a |
| Mower Width w/ Catcher | n/a |
| Style 2: Catcher Style | BAC-VAC |
| Style 2: Powered / Non-Powered | Powered |
| Style 2: Catcher Capacity | 10 bushel |
| Style 2: Mower Length w/ Catcher | n/a |
| Style 2: Mower Width w/ Catcher | n/a |
If you have any questions about this Hustler X-One 60-inch mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
