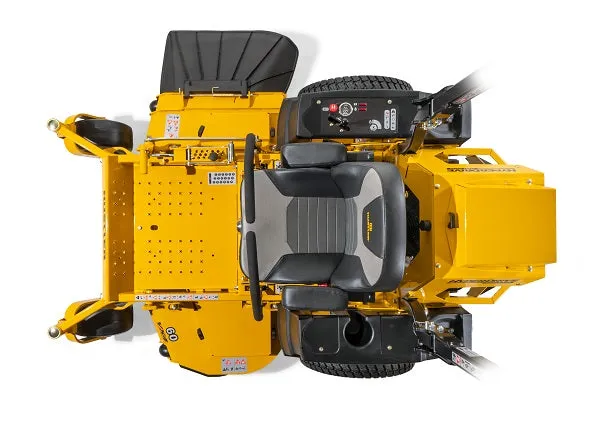

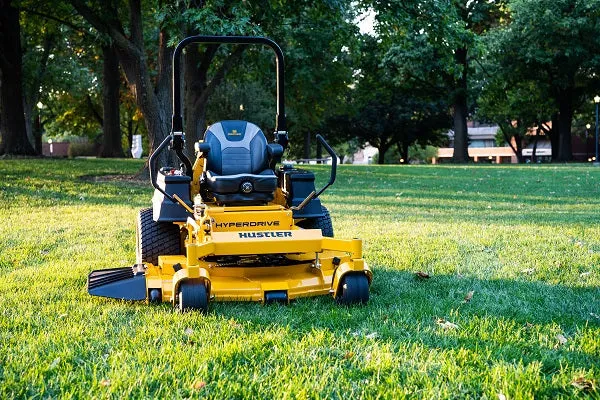

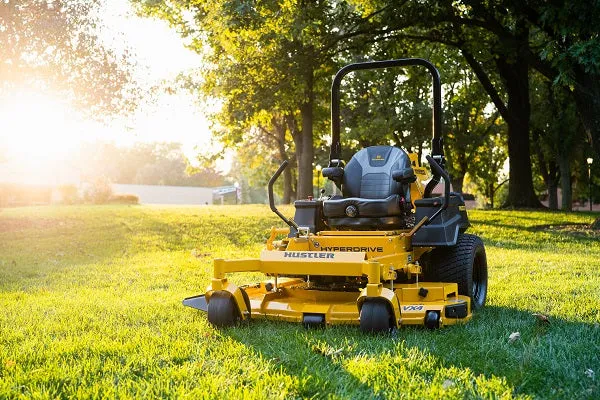

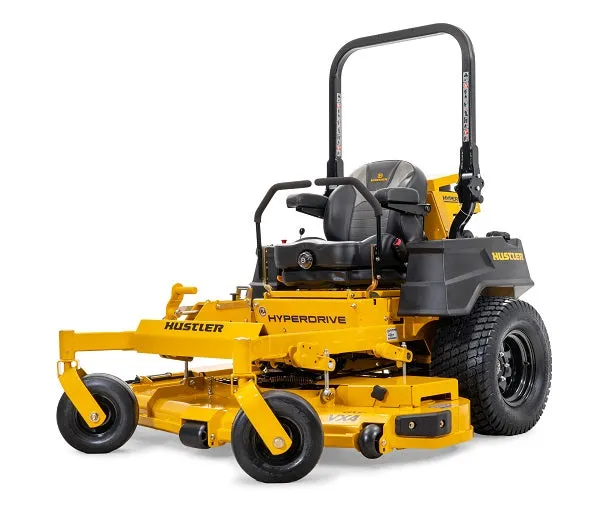

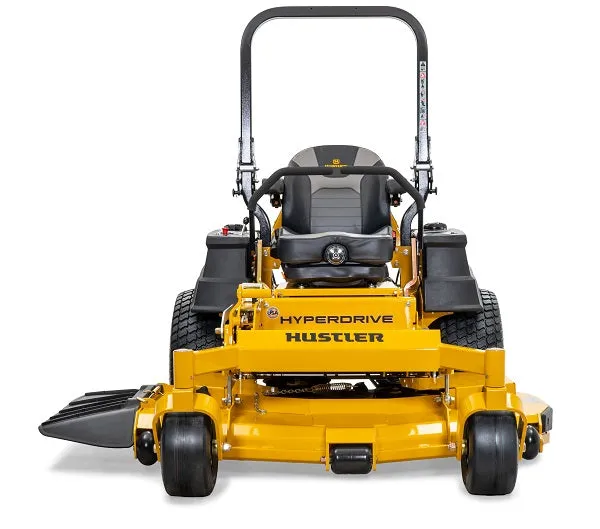

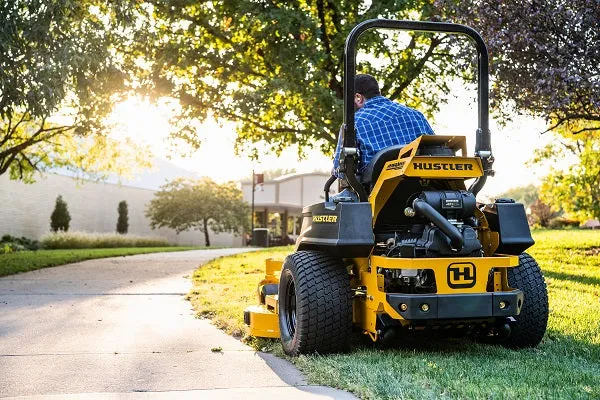

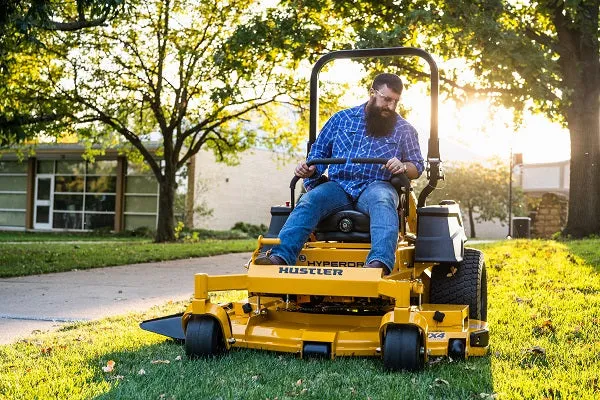

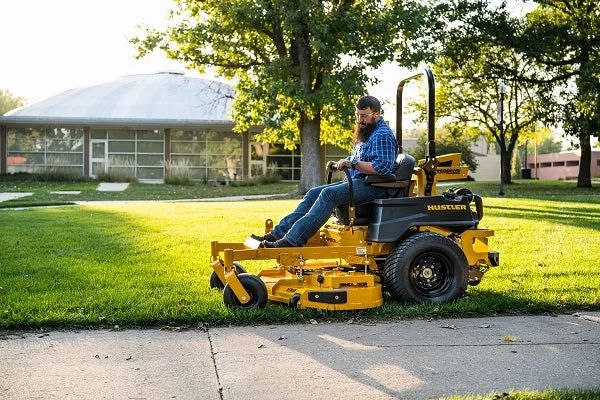

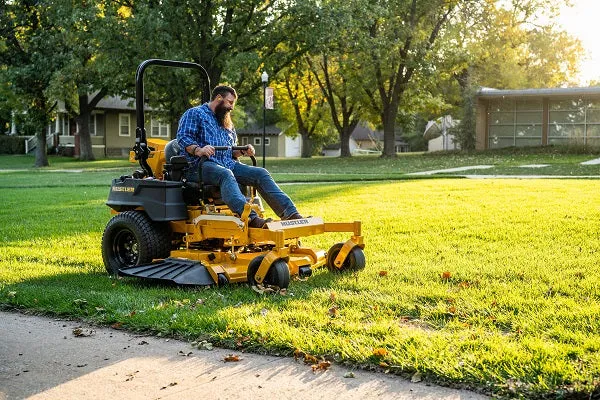

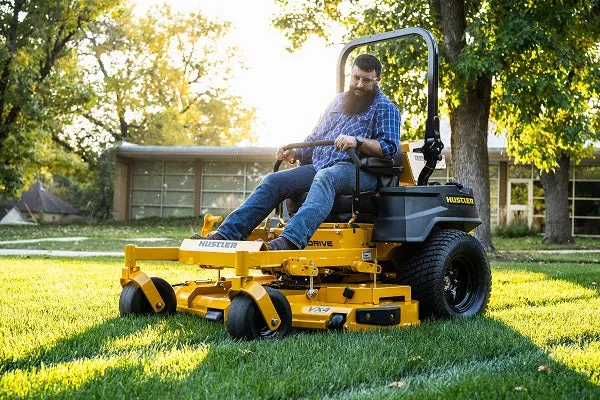

Powerhouse that Delivers Unrivaled Performance
The HyperDrive® features Hustler’s exclusive HyperDrive transmission system – the largest, most durable drive system in the industry. And, it’s backed by a 3,000 hour drive system warranty.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”- 5.5” with your foot.
- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.
- Commercial-grade Torque: Danfoss DDC-20 pumps and Parker TG280 wheel motors.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high-speeds while maintaining cut quality.
- Easy Serviceability: Flip-up seat pan, removable floor pan and vented pulley covers for easy and simple maintenance.
- Large Drive Tire: Large 26" drive tires provide a smoother ride experience.
- Hydraulic System Warranty: 3000-Hour pump and motor warranty unmatched in the industry.
- HyperDrive Hydro System: A Hustler® exclusive, industrial pumps and high torque wheel motors, 3-gallon reservoir, oil cooler and hot oil shuttle.
Hustler Super Z Hyperdrive Accessories |
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) |
|
| Bac-Vac Catcher (must order (1) adapter kit below to complete) |
|
| 3 Bag and Bac-Vac Catcher Adapter 72" |
|
| Fabric Side Catcher 3.5 bushel (no adapter needed) | |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
|
| Mulching Kit 72" |
|
| Flex Forks Kit (cannot use with Bagger installed) |
|
| Front Light Bar Kit |
|
| Side Light Bar Kit (must purchase 128867 to add side light) |
|
| Beacon Kit | |
| Flasher Kit | |
| Hitch Kit |
|
| Sand Kit 72" |
|
| Steering Lever Extension Kit |
|
| Stripe Kit 66", 72" Deck |
|
| Rear Anti-Scalp (Dual) 72" Deck |
|
| Rear Anti-Scalp (Single) 54", 60", 66", 72" Deck | |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) |
|
| Semi-Pneumatic Tire - tire/wheel assembly 13 x 6.5 x 6 | |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Vanguard Big Block EFI |
| Engine Horsepower | 40 |
| Displacement | 993cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy Duty Canister |
| Engine Warranty | 5 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Dual Hydrostatic Danfoss DDC-20 Transmission w/Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/9" fan |
| Fuel Capacity |
11.7 gal. |
| Ground Speed (Fwd) | Up to 16 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 72" |
| Cutting Height | 1" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 24.50" |
| Blade Tip Speed | 18,500 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5" x .375" steel bar |
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2" steel |
General |
|
| Seat | I3M Suspension Seat (adjustable armrests & back) |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) | 26 x 12-12 |
| Weight (lbs) | 1596 |
| Height (Inches) | 47.8, 73.5 w/ ROPS up |
| Length (Inches) | 93 |
| Width w/ Chute Up (Inches) | 72 |
| Tire-to-Tire Width (Inches) | 60 |
| Productivity (Acres Per Hour) | 9.31 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | 3-bag |
| Powered / Non-Powered | Powered |
| Catcher Capacity | 12 bushel |
| Mower Length w/ Catcher | 119.2" |
| Mower Width w/ Catcher | 82.9" |
| Style 2: Catcher Style | BAC-VAC |
| Style 2: Powered / Non-Powered | Powered |
| Style 2: Catcher Capacity | 10 bushel |
| Style 2: Mower Length w/ Catcher | 112.7" |
| Style 2: Mower Width w/ Catcher | 82.9" |
