Features:

• Conducts surge testing with combination, telecom, and ring waves to IEC 61000-4-5 limit (6kV)
• Performs EFT testing to IEC 61000-4-4 limit (4kV)
• Monitors surge voltage and current at the output terminals
• Monitors output of coupling unit/Automatically switch connections according to coupling mode
• Operates via easy-to-use Windows™-based PC software, or from the system front panel
• Creates custom test protocols via a simple keyboard interface and integral system software
• Features testing to 6kV with the most common surge requirements:
• Combination Wave    (1.2/5us)
• Telecom Wave     (10/700us)
• Ring (Oscillatory) Wave
• Supports a full line of options and accessories, which include:
• 3-Phase AC/DC Mains and I/O line Coupling/Decoupling Networks (CDNs)
• Magnetic Field Magnetic Loop Coil
• EFT Verification Loads
• Differential High Voltage Probes

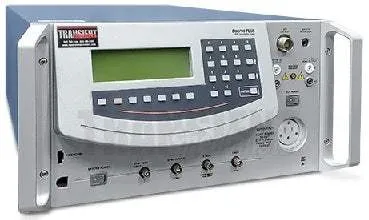

Test for up to seven global EMC standards for susceptibility to electromagnetic interference and electromagnetic compatibility with a single instrument. The Thermo Scientific™ EMCPro PLUS™ EMC Test System is an advanced, multi-capability, low-cost EMC immunity test system addressing a broad range of test capabilities and can be configured for testing to one or any combination of IEC basic immunity standards. The EMCPro Plus system is the only tester capable of monitoring surge voltage and current at the output terminals as opposed to measuring at the generator, which can lead to large errors.
