Electromagnetic tube inspection has rapidly become a routine NDE method for providing reliable and rapid condition assessments of process exchanger tubing.

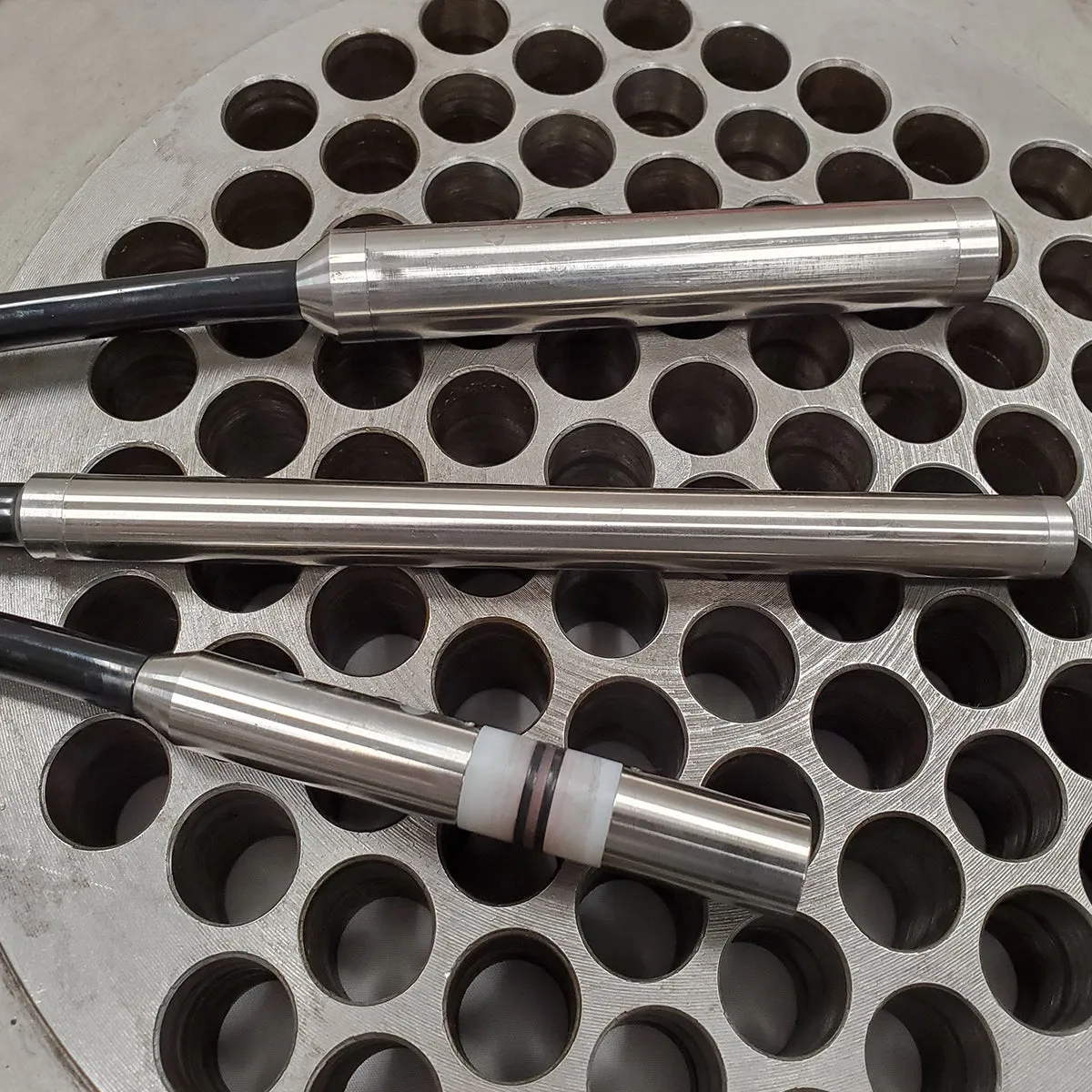

Eddy Current probes utilize general-purpose bobbin coils and are designed for inspecting straight-length non-ferrous tubing. These probes come standard on legacy 4-pin Amphenol connectors. The probe heads are waterproof with stainless steel wear sleeves and integral to the 50’ kink-resistant, 3/8” diameter shafts. The introductory stocked probe sizes and types are:
Indicate the size you would like a quote on for Eddy Current Probe.
Size | Frequency Range |
0.490” | Low (10kHz-50kHz) |
0.540” | Low (10kHz-50kHz) |
0.540” | Mid (50kHz-400kHz) |
0.570” | Low (10kHz-50kHz) |
0.570” | Mid (50kHz-400kHz) |
0.600” | Mid (50kHz-200kHz) |
0.720” | Low (10kHz-50kHz) |
0.770” | Low (10kHz-50kHz) |
0.770” | Mid (50kHz-400kHz) |
0.800” | Low (10kHz-50kHz) |
0.800” | Mid (50kHz-400kHz) |
0.830” | Mid (50kHz-400kHz) |
