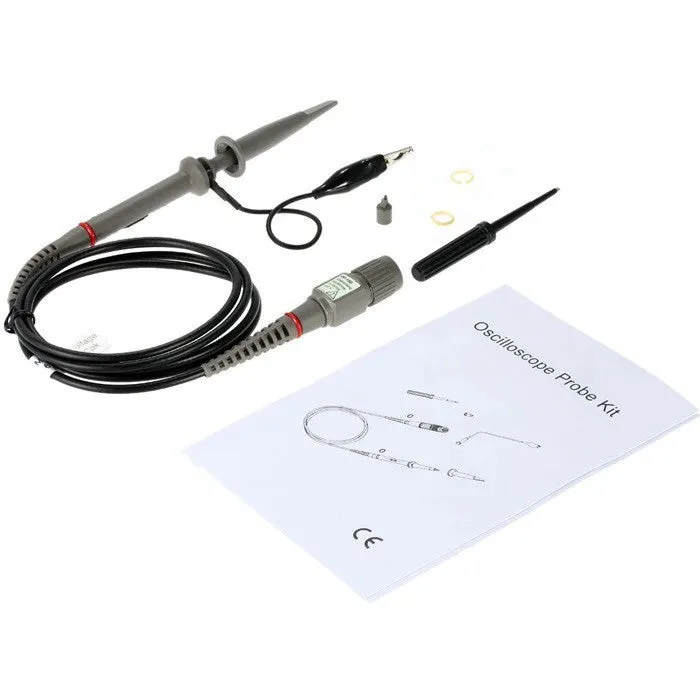

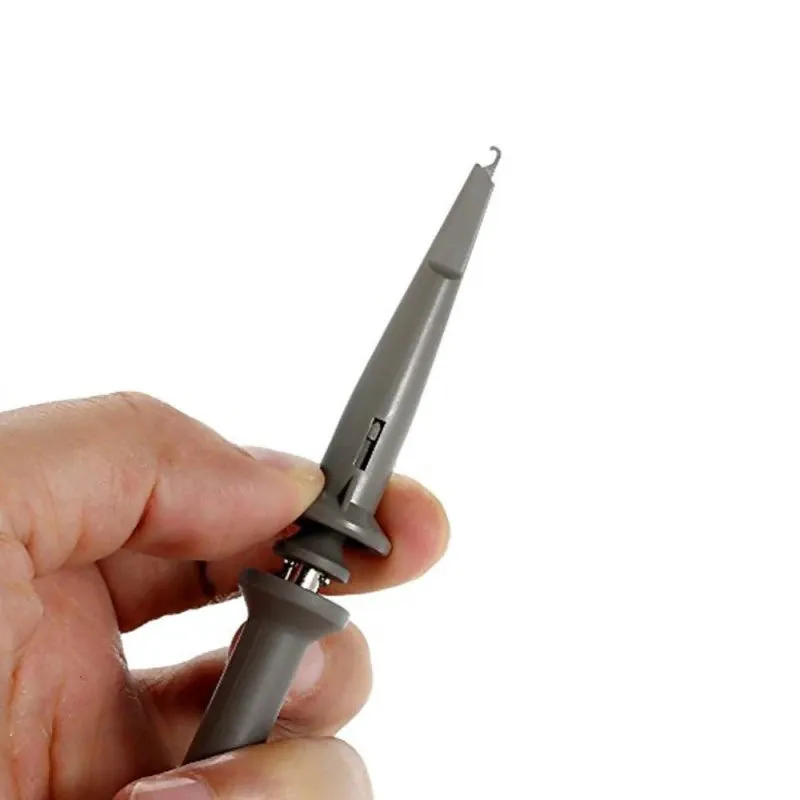

• The AK510 probe is a passive low impedance attenuation probe.
• The probe has been designed and calibrated for use on instruments having an input impedance of 1MΩ paralleled by 20pF.
• However, it may be recalibrated for use on instruments having an input capacitance of 15 to 40pF.
• The probe incorporates a two position (X1, X10) slide switch in the compensating network and cable length of 1.2 meters.

Electrical Characteristics

• Temperature -15℃ to 70℃
• Attenuation: X1, X10
• Input Capacity:
• X1: 85pF~115pF
• X10: 18.5pF~22.5pF
• Oscilloscope Input Capacity: 15pF~40pF
• Input Resistance:
• X1: 1MΩ±2%
• X10: 10MΩ±2%
• Bandwidth:
• X1: DC - 6MHz
• X10: DC - 100MHz
• Max Input Voltage:
• X1: <200V DC Peak AC
• X10: <600V DC Peak AC

Datasheet
