Features:

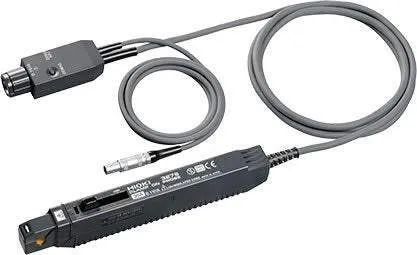

100MHz 30A AC/DC Current Probe

• Wide band: DC to 100 MHz (-3 dB)
• High S/N characteristic enables measuring ultra low mA-range current waveforms
• Connects directly to oscilloscope BNC input terminal
• Connects directly to the Memory HiCorder to provide waveform monitoring
• An optional power supply is available for use with oscilloscopes that do not provide probe power

Hioki wide frequency current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3276 offers a wide DC to 100 MHz bandwidth and 30A of continuous input, and is ideal for capturing transient current signals from switching power supplies, inverters, and motor controllers.

Clamp Sensors (For Oscilloscope/ MEMORY HiCORDERs, 100MHz 30A AC/DC wide-band for observing waveforms). Wide-band current probe allows direct input to oscilloscope. Connect and power up Clamp-on sensor to use in combination with the oscilloscope, or the MEMORY HiCORDER.
